Type:Belt dryer
Application:Medicine Processing, Food Processing
Condition:New
Place of Origin:Sichuan, China
Brand Name:ShouChuang
Voltage:380v
Power:22kw
Dimension(L*W*H):Customized
Certification:ISO SGS
Key Selling Points:Automatic
Warranty:1 Year
After-sales Service Provided:Online support, Field installation, commissioning and training, Field maintenance and repair service
| Quantity: | |
|---|---|
Type:Belt dryer
Application:Medicine Processing, Food Processing
Condition:New
Place of Origin:Sichuan, China
Brand Name:ShouChuang
Voltage:380v
Power:22kw
Dimension(L*W*H):Customized
Certification:ISO SGS
Key Selling Points:Automatic
Warranty:1 Year
After-sales Service Provided:Online support, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service:Video technical support, Online support
Applicable Industries:Manufacturing Plant, Farms, Food Shop
Local Service Location:None
Showroom Location:None
Marketing Type:New Product 2020
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Bearing, Pump, Gear, Motor, Gearbox, Other, PLC, Engine, Pressure vessel
Weight:Various
Name:Belt dryer
Color:Silver
Function:Medicinal materials Dehydrator
Advantage:Low Consumption High Efficiency
Fuel:Electricity Etc
Usage:Reduce Material's Moisture
Vacuum degree:100Pa
Temperature:15 -75
Noise:45db
Supply Ability
350 Set/Sets per Year
Packaging Details
Carton or Wooden case
Port
Shanghai, Tianjin, Ningbo or other
Lead Time:
Quantity(Sets) | 1 - 5 | >5 |
Est. Time(days) | 30 | To be negotiated |
1.Heat exchange furnace.
2.Heat exchange furnace draft fan with chimney.
3.Fan (own brand fan).
4.Chili drying equipment system (Food grade stainless steel,drying temperature 30~160 degree centigrade)
5.Feeding conveyor.
6.Discharge conveyor.
7.Control panel.
8.Remote control temperature and humidity control system.

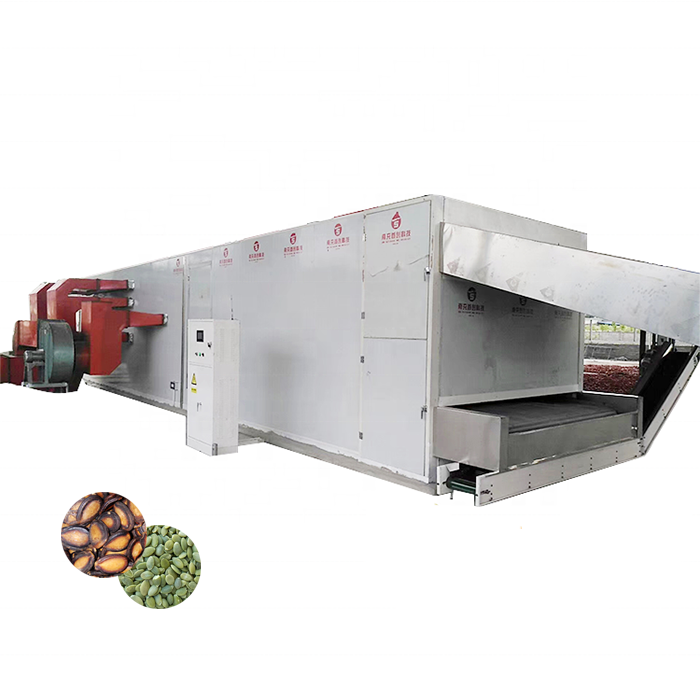

The mesh belt type through flow dryer uses the hot air produced by the hot air stove / electric heating pipe as the drying medium, and transmits the hot air to the dryer through the hot air distribution parts to dry the materials. The processed materials are transported by the multi-layer movable stainless steel mesh belt, and the hot air flows through the mesh belt and the material layer on it from the bottom to the top, with multi-layer circulation and turnover, drying layer by layer, uniform heat exchange and charging Points, high production efficiency, good product quality.
In the whole equipment, the hot air on-off and air volume, the speed of network belt operation, the temperature in the drying room and other states can be adjusted by the electric control system, achieving continuous production, greatly improving work efficiency, reducing labor intensity and saving labor cost.
1. For the whole processing line just need 1-2 people to operate.
2. 45 years drying experience and have many sucess working sites can visit.
3. It can be continuously produced in large quantities and keep the nutrition and color of the product to the maximum extent.
4. According to the characteristics of capsicum, different technological processes and necessary auxiliary equipment can be added.
5. More drying output, fast drying speed, high dry product efficacy, fuel saving, high thermal efficiency, good dry product color.
6. Self owned patent technology dryer equipment, more than 50 national patent technologies, thousands of materials drying database.The unique air supply mode of the multi section pulse drying technology can prevent the damage of the material caused by the flooding drying.
7. Stainless steel material and food grade conveyor to ensure the product reach hygienic standard.
8. After the machine arrived and the seller will dispatch engineer to buyer's working sites help buyer install and adjust the drying machine until the machine achieve the best drying effect,then our engineer will back to our country.
Model | SC-4*6 | SC-4*7 | SC-4*8 | SC-4*9 | SC-4*10 | SC-4*12 |
Layer | 4 | 4 | 4 | 4 | 4 | 4 |
Paving thickness | 41m2 | 48m2 | 55m2 | 62m2 | 69m2 | 83m2 |
Drying temperature | 50-160℃ | |||||
Drying cycle | 2-8 hours | |||||
Dehumidification intensity(kg/24h) | 4500-8000 | 8000-9500 | 9500-11000 | 11000-12500 | 12500-14000 | 15500-17000 |
Total power of fan(kw) | 15 | 15 | 18.5 | 22 | 22 | 30 |
Total power(kw) | 18.5 | 18.5 | 22 | 27.5 | 27.5 | 35.5 |
Dimension(m) | 6*2.2*2.7 | 7*2.2*2.7 | 8*2.2*2.7 | 9*2.2*2.7 | 10*2.2*2.7 | 12*2.2*2.7 |
In view of the organization structure of agricultural products like goji berry, grapes and their activeingredients form, through reduplicative trials and uses of dozens of production lines, we sum up the dialectical relationship among evaporation rate, medium humidity, temperature and drying cycle, color change, deformation and qualitative change in each stage of drying processes. we integrate mechanizationand digital technology and develop the most advanced pulse drying mode. The pulsation drying technique isimplanted based on the combination of static and dynamic drying, which greatly improves energy efficiency ratio and yield of primary product, and realizes assembly line operation. Materials are moving or reciprocating in a certain frequency in the drying system while the internal and external evaporation rate is adjusted with the same frequency, which completely solves effects of epidermis rupture, foaming, oil fruit,dark color, long drying period on yield of primary product and the commodity value, and eliminates the energy consumption of invalid workmanship to the maximum extent, and maximizes the quality of dried products.
