Cocoon Drying Machine

Cocoon dryer is a large dehydration equipment specially used for cocoon drying

Cocoon dryer is a large dehydration equipment specially used for cocoon drying. It has the characteristics of environmental protection, energy saving, stability, cocoon quality preservation, simple operation and labor saving.

It is a drying equipment that can meet the requirements.

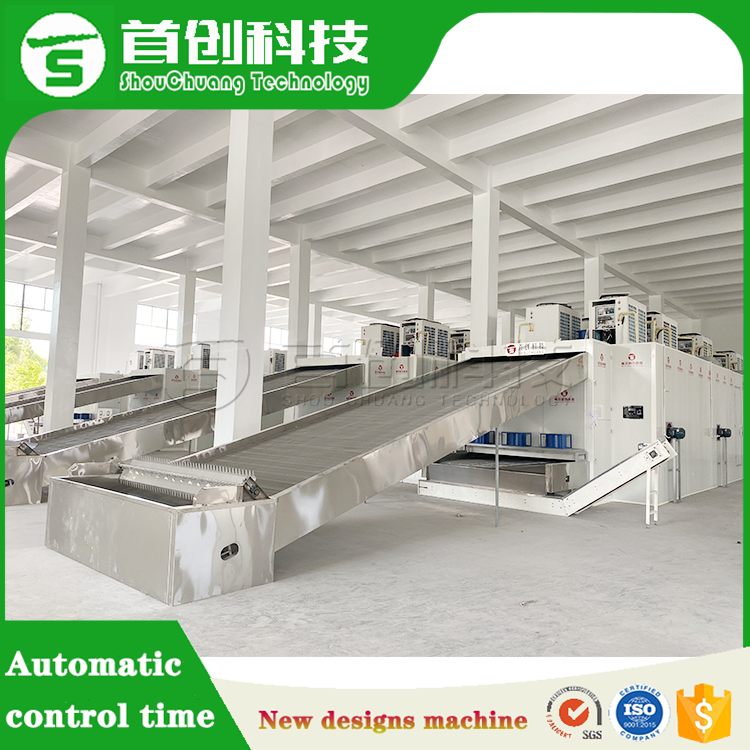

The machine is a multi-stage rotary belt type hot air drying equipment. After the hot air heats the cold air sent by the fan to the required temperature, it is sent from the upper and middle parts of the drying chamber respectively by the hot air system according to the cocoon drying process requirements. The fresh cocoon is sent to the cocoon net on the top layer of the drying chamber through the automatic cocoon laying device. It rotates along the horizontal direction and passes through three temperature zones: high, medium and low, The dried cocoon is finally output by the cocoon extractor and packaged after cooling.



Working principle of shouchuang SC silkworm cocoon drying machine:

The mesh belt type through flow dryer uses the hot air produced by the hot air stove / electric heating pipe as the drying medium, and transmits the hot air to the dryer through the hot air distribution parts to dry the materials. The processed materials are transported by the multi-layer movable stainless steel mesh belt, and the hot air flows through the mesh belt and the material layer on it from the bottom to the top, with multi-layer circulation and turnover, drying layer by layer, uniform heat exchange and charging Points, high production efficiency, good product quality.

 Cocoon dryer machine cocoon drying equipment cocoon processing line dried cocoon

In the whole equipment, the hot air on-off and air volume, the speed of network belt operation, the temperature in the drying room and other states can be adjusted by the electric control system, achieving continuous production, greatly improving work efficiency, reducing labor intensity and saving labor cost.


Shouchuang cocoon drying machine components:

1.Heat exchange furnace.

2.Heat exchange furnace draft fan with chimney.

3.Fan (own brand fan).

4. Drying equipment system (Food grade stainless steel,drying temperature 30~100 degree centigrade).

5.Feeding conveyor.

6.Discharge conveyor.

7.Control panel.

8.Remote control temperature and humidity control system.
