SHOUCHUANG TECHNOLOGY
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| |
| |
Supply Ability：350 Set/Sets per Year
Packaging Details：Carton or Wooden case
Port：Shanghai, Tianjin, Ningbo or other
Lead Time:
| Quantity(Sets) | 1-5 | ＞5 |
| Est. Time(days) | 30 | To be negotiated |

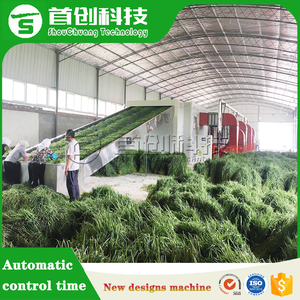

The dehydrated vegetables dryer is a special equipment which is improved and developed on the basis of traditional hot air dryer with mesh-belt?driving?device. Efficiency will be greatly improved, and energy will be saved by using the equipment. It is widely used in all kinds of the dehydration of vegetables and fruits such as grapes, turnips and onions, etc. According to the characteristics and requirements of materials for drying, we have integrated many years of experience in drying agriculitural products to customize professional equipment for customers, have developed the professional drying equipment which is suitable for customers. Every part of the equipment touched by materials uses food grade materials, accords with the national food safety requirement.
The whole box body adopts totally closed structure, and the hot air is recycled inside, which is energy-saving and efficient; the thickness of insulation layer is 80-200 mm, using high-density rock wool or ultra-fine aluminum silicate fiber cotton to reduce the heat loss; the box is equipped with adjustable air distribution board, which can adjust the gap size up and down to control the air flow, so that the temperature in the box is more uniform; the dryer is the industry's unified standard, a variety of styles of dryers can be selected, suitable for various industries, interchangeable.

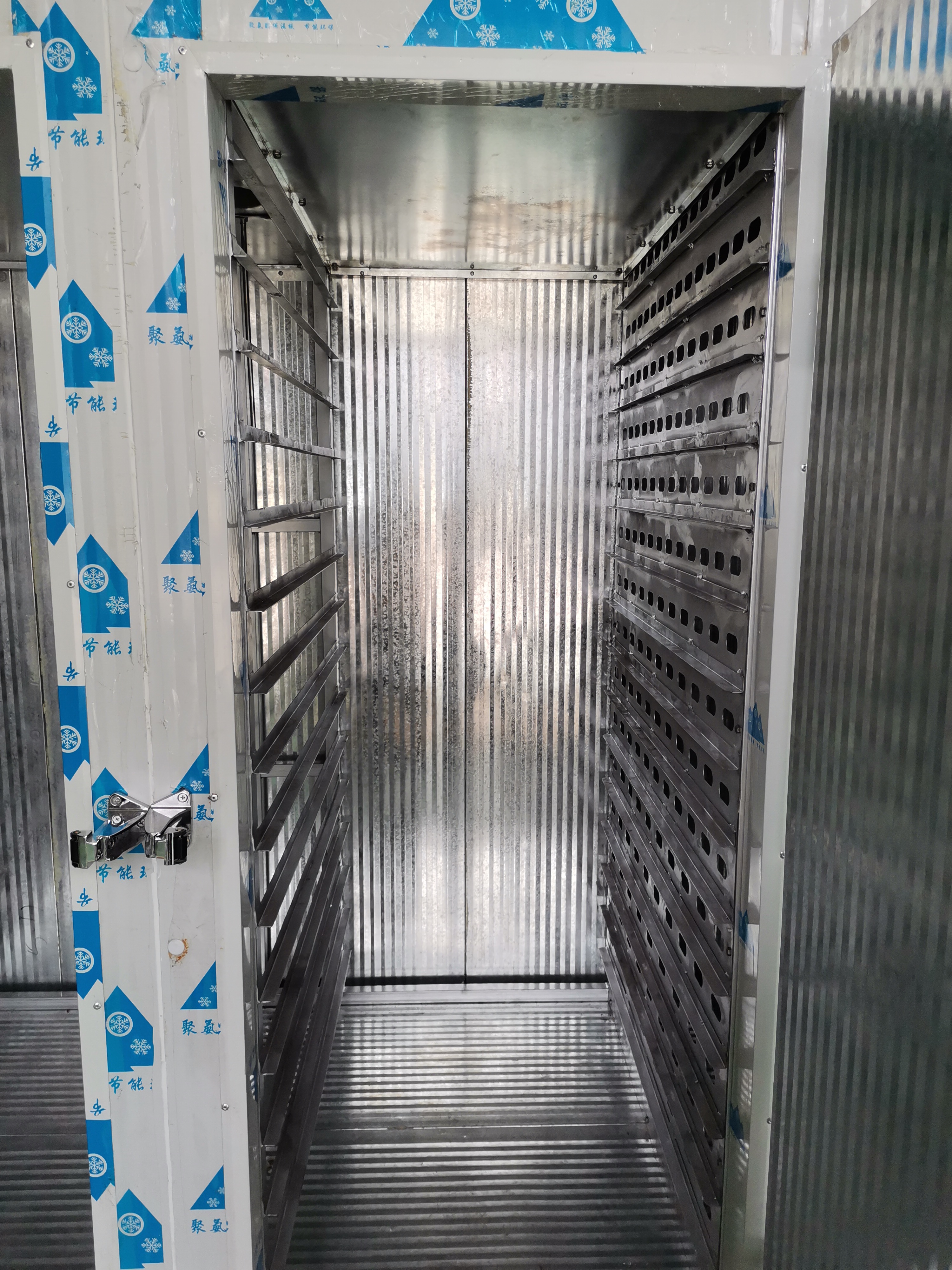

The hot air circulation oven adopts the long shaft circulation fan with high temperature resistance. The forced hot air heated by the electric heating pipe or the steam heat exchanger circulates in the oven, which enhances the heat transfer, improves the water evaporation rate and shortens the drying time. The whole box adopts a fully enclosed structure, most of the hot air is circulated in the box, and the hot and humid air is reasonably discharged and fresh air is added, with high thermal efficiency and energy saving. Under the effect of forced ventilation, the materials are dried evenly. The oven is equipped with an automatic temperature control system, with accurate temperature control.
| Item | SC-CI | SC-C2 | SC-C3 | SC-C4 | SC-C5 |
| Dtying area(m2) | 7.1 | 14.1 | 28.3 | 42.4 | 56.5 |
| Effective volume(m3) | 1.3 | 2.6 | 4.9 | 7.4 | 10.3 |
| Dtying Capacity(Kg/batch) | 60 | 120 | 240 | 360 | 480 |
| Fan air volume(m3/h) | 3450 | 3450 | 6900 | 10350 | 13800 |
| Fan power(KW) | 0.55 | 0.55 | 0.55*2 | 0.55*3 | 0.55*4 |
| Dryer dimension(mm) | 1410*1200*2160 | 2250*1200*2160 | 2250*2160*2160 | 3290*2160*2160 | 4360*2160*2160 |
| Trolley | 1 | 2 | 4 | 6 | 8 |
| Tray | 24 | 48 | 96 | 144 | 192 |
| Weight(Kg) | 480 | 1080 | 1520 | 1960 | 2400 |
| Active Pulse Air Supply Technology | The Internal Circulation Technology | Multi Section Pulse Drying Technology |
| The system realizes active temperature control by layers and sections, active air supply control by a certain evaluation rate, maximum preservation of material color, flavor and other inherent quality, and improvement of drying efficiency by 21%+. | The original small air supply and large cycle technology combined with temperature and humidity identification technology is adopted to reduce the consumption of drying efficiency, and the comprehensive energy efficiency ratio is improved by 27%+ | The pulsating drying technology is implanted on the basis of dynamic and static combined drying, which solves the effects of skin rupture, blistering, browning and long drying cycle on the finished products,and maximizes the quality of dry products. |
Sichuan Nanchong Shouchuang Technology Development Co., Ltd is a service provider focusing on comprehensive processing solutions for agricultural products.It is a high-tech enterprise.It is committed to helping customers solve the problem of storage and collection of agricultural products,put an end to processing pollution and preserve the quality of agricultural products.
The company adheres to the concept of "environmental protection, energy conservation and safety", and adheres to the enterprise spirit of "taking responsibility bravely and pursuing excellence". From micro machinery to large-scale complete processing system, through advanced technology, software, equipment and services, it helps the industrial optimization and helps customers optimize their operation. Its products cover fruits and vegetables, medicinal materials, drinks, feed and food processing and other fields.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| |
| |
